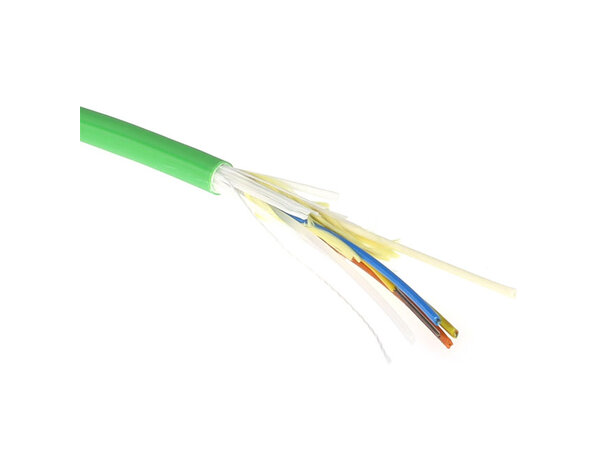

Long Distance OSP, Outdoor Plant Duct Installation General Construction: The cable consists of 24 color-coded SM G652D optical fibers in 2 color-coded loose tubes and 24 color-coded MM OM3 optical fibers contained in 2 other color-coded loose tubes. These tubes are filled with a thixotropic gel to prevent the ingress of water and SZ stranded with one filler around a dielectric central strength member. Fiber-glass strength yarns reinforce the cable core and an outer jacket completes the cable structure.

Tubes color code:
OM3: 1.Blue 2.Orange
SM: 3.Yellow 4.Yellow

Diameter: 9,5 mm nom.
Vikt: 97 kg/km
Max. tillåten dragkraft: 1600 N
Max. trycklast: 400 N/cm
Temeraturområde drift: -40°C to +70°C
