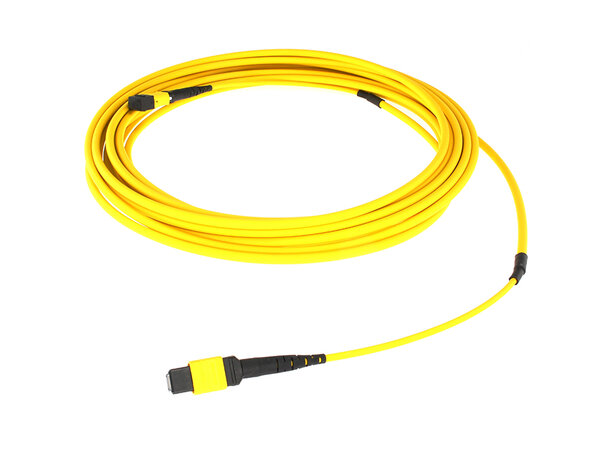

ECS MPO Trunk 12x10/125 OS2 12,5mMPO Elite hona-hona rak Pol A

Features
OS2 Fiber Grade
12 Core Microcable Trunk
LSZH, OFNP Optical Fiber Nonconductive Plenum Cable Jacket
Female MTP Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Polarity A
Factory Terminated and Tested

Applications
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
Infiniband
Emerging 40 and 100Gbps Protocols

Standards Compliance
TIA/EIA-568-C.3 and ISO/IEC 11801
IEC-61754-7 & EIA/TIA-604-5
NFPA 262 (OFNP) or IEC 60332 (LSZH)
TIA/EIA 568-B.1-7
Compliant to Directive 2002/95/
EC (RoHS) and REACH SvHC

MTP trunk assemblies are offered in fiber types in standard 12, 24 or 48 core versions using a compact and rugged microcable structure. The compact cables optimize cableway use and improve airflow.
