A New Generation IEEE 802.3bt PoE++ Managed Switch with Advanced L2/L4 Switching and Security

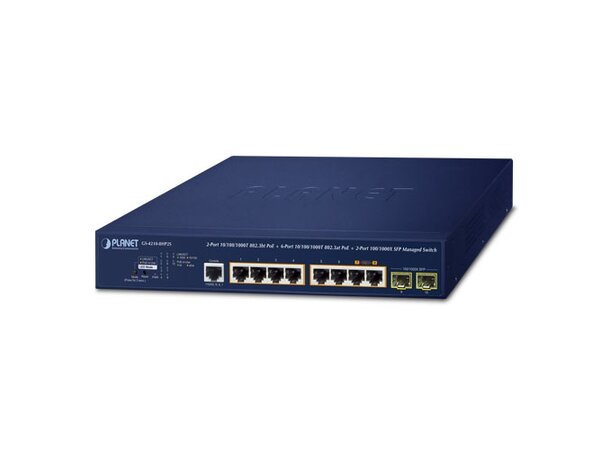

PLANET GS-4210-8HP2S is a cost-optimized, 1U, Gigabit IEEE 802.3bt PoE++ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 2 10/100/1000BASE-T ports featuring 95-watt 802.3bt PoE++, 6 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 2 100/1000BASE-X SFP ports. With a total power budget of up to 240 watts for different kinds of PoE applications, the GS-4210-8HP2S provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises.

IEEE 802.3bt PoE++ Solutions

The GS-4210-8HP2S supports the 802.3bt standard, supplying up to 95 watts per 802.3bt port for increased requirements of devices. It can offer more PoE applications, such as:

• PoE PTZ speed dome cameras
• Any network device that needs higher PoE power to work normally
• Thin-client
• AIO (All-in-One) touch PC
• Remote digital signage display

Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-4210-8HP2S features the following special PoE management functions:

• PD alive check
• Scheduled power recycling
• PoE schedule
• PoE usage monitoring
• PoE extension

Intelligent Powered Device Alive Check

The GS-4210-8HP2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-8HP2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
