Connecting with Switched IP Power Manager (IPM)

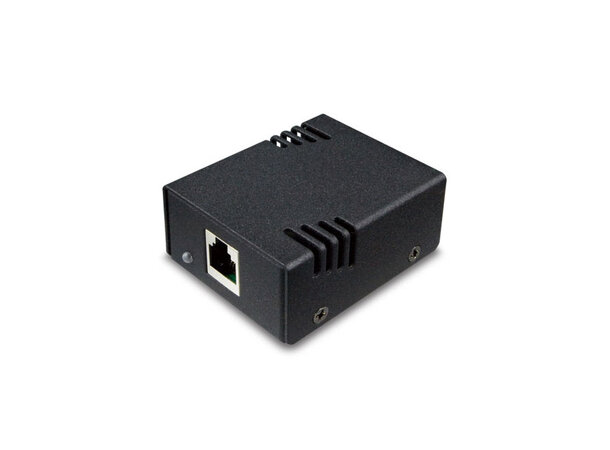

The ESB (Environmental Sensor Box) is a monitoring device that allows you to remotely monitor the temperature, humidity. PLANET Switched IP Power Manager (IPM) is equipped with a console port for connecting to an environmental sensor box (ESB). Temperature and humidity sensors may be added to control the power switch by monitoring the environmental changes. When the temperature and humidity reach the customizable minimum/maximum thresholds set, you will be notified via SMS and e-mail.

- Measurement range: 0 – 40°C (temperature); 0 – 95% RH (humidity)
- Measurement accuracy: +/- 0.1°C (temperature); +/- 2% RH (humidity)
- Off-line monitor
- Naming support for ESB port
- Connect to Switched IPM over RJ11 cable
- User selectable alarm thresholds allow you to define acceptable temperature or humidity limits
- Comprehensive environmental management and flexible configuration via Web browser
- Automatic events notification via E-mail and SNMP trap
- Regularly records ESB parameters for statistic analysis and event diagnostics
- Quick and easy installation (hot-swappable)
