Description:

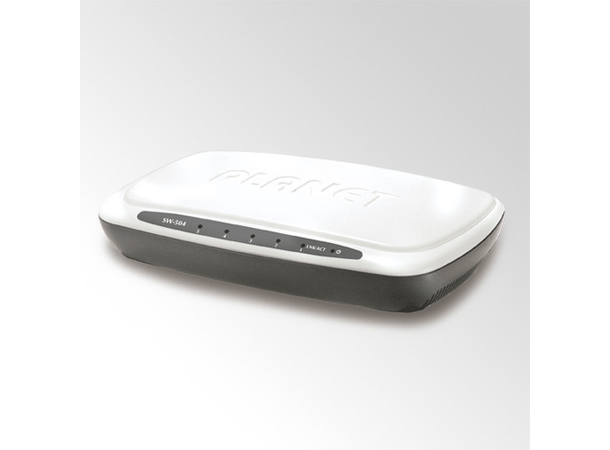

The SW-504 Fast Ethernet Switch is a Simple and cost-effective, highly reliable network switch. To segment the network, ease the network traffic, the 5-port 10 / 100Mbps are useful for the SOHO switched networks as the friendly network backbone. Provides array LED indicators, the network status can be monitored at a glance.
Key Features:
• 5-Port 10/100Mbps TP interfaces
• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Supports 1K absolute MAC address
• Supports to handle up to 1552bytes packet
• Automatic address learning and address aging
• Supports Automatic MDI / MDI-X function
• Full / Half-Duplex capability on each TX port
• LED indicators for simple diagnostics and management
• FCC Class B, CE compliant
