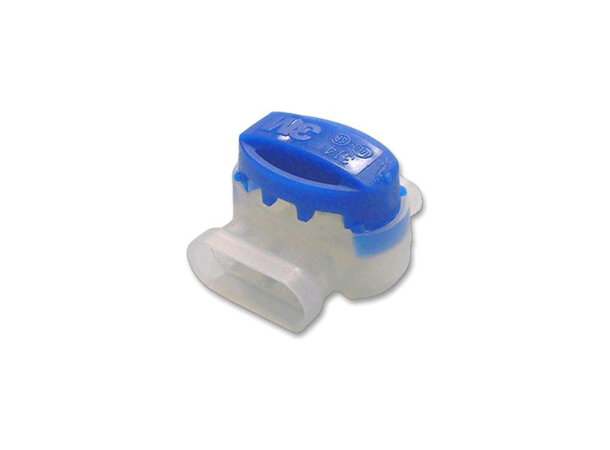

The 314 from 3M is a Scotchlok self stripping moisture resistant, electrical pigtail connector. It is used to electrically connect two or three solid or stranded copper wires of 22AWG to 14AWG. With built-in moisture seal and flame retardant capabilities this Scotchlok insulation displacement connector can be used for pigtail 2 and 3 wire splicing. Suitable for use with common thermoplastic insulated wires such as T, TF, TFF, TFN, TFFN, AWM, TEW, SAE-GPT with a maximum insulation diameter of.150 inches (3.8mm).
•Flame retardant nylon blue cap and white body insulator
•Tin plated brass U-contact
•UL listed and CSA certified
•Maximum temperature range of 105°C
•Easy to use and save time to install
•No special tools required, squeeze shut connector
•Unique 'U' contact provides a dependable electrical connection
•Rated up to 600V
