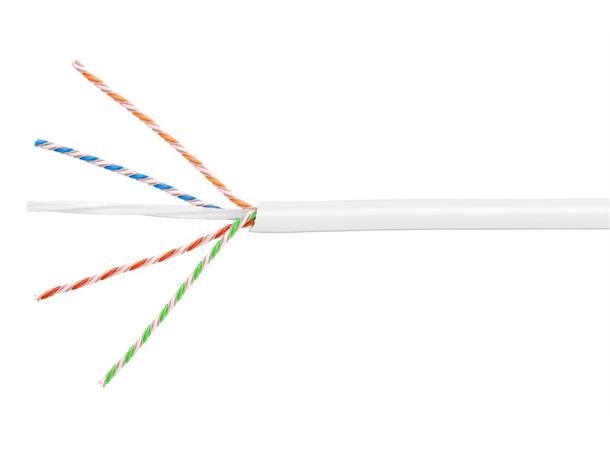

Commscope kabel UTP C6a 305m/kart LSZH

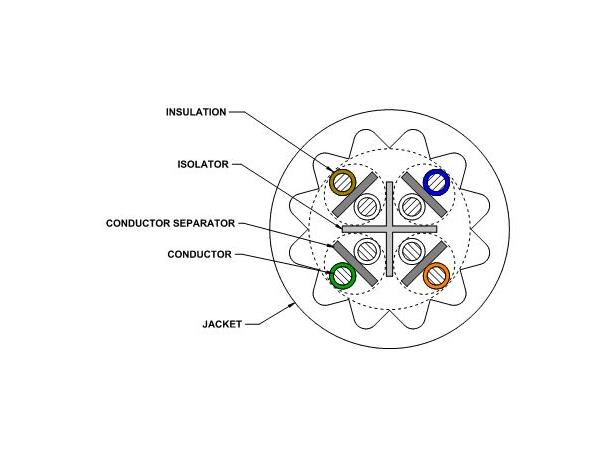

Construction Materials

Jacket Material: Low Smoke Zero Halogen (LSZH)
Conductor Material: Bare copper
Insulation Material: Polyolefin
Separator Material: Polyolefin
Separator 2 Material: Polyolefin

Dimensions
Cable Length: 305 m
Cable Weight : 36.90 lb/kft
Diameter Over Jacket, nominal: 7.239 mm
Jacket Thickness 1.295 mm

Electrical Specifications
ANSI/TIA Category: 6A
dc Resistance Unbalance, maximum: 4 %
dc Resistance, maximum: 7.61 ohms/100 m
Mutual Capacitance: 6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP): 66 %
Operating Frequency, maximum: 550 MHz
Operating Voltage, maximum: 80 V
Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Safety Voltage Rating: 300 V
