D : 60mm

    H : 27mm

    B : 102mm

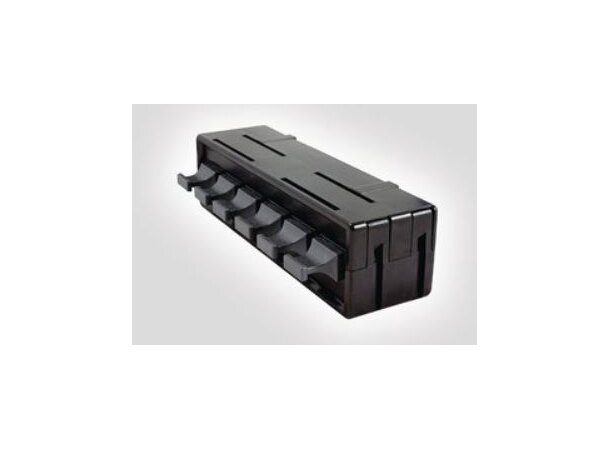

The RapidNet Fibre Adaptor Mounting Module has been designed to allow the RapidNet solution to be used in areas with limited access or restricted space where a RapidNet Cassette cannot be used. The module is pre-loaded with adaptors which allows ruggedised fan outs to be presented in RapidNet panels and offering a maximum of 144 fibres in a single adaptor which equates to 576 fibres in 1U of space.

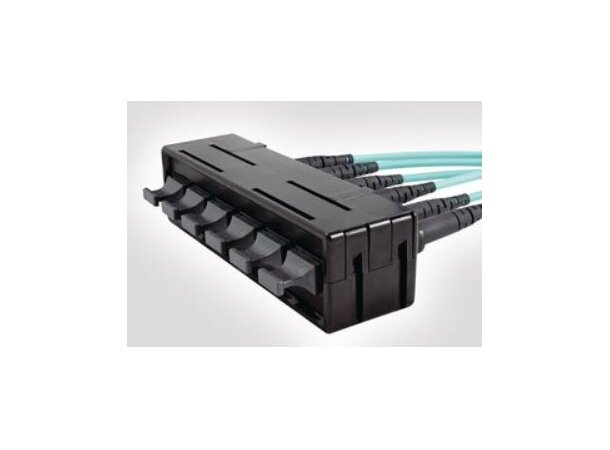

The module is supplied in a 6 hole configuration fitted with 6 x 24 fibre MTP adaptors. The MTP Fibre Adaptor Mounting Module is suitable for use with HellermannTyton Cassette to Fan Out, Fan Out to Fan Out and MTP Trunk/Backbone cables. All HellermannTyton fan out cables are supplied in a protective nylon sock to prevent damage during installation. The mounting module can be used in any RapidNet panel; however it is recommended that it is used with the Distribution Chassis or Rear Cable Management Panel as both panels offer rear cable management for the fan out cable, providing cable protection inside the rack or cabinet. All fibre adaptors and connectors comply with the latest published version of IEC874-14 ensuring interoperability.
