Planet Media Converter 10/100/1000 - SFP 10/100/1000B/T,  IEEE802.3at PoE 30W

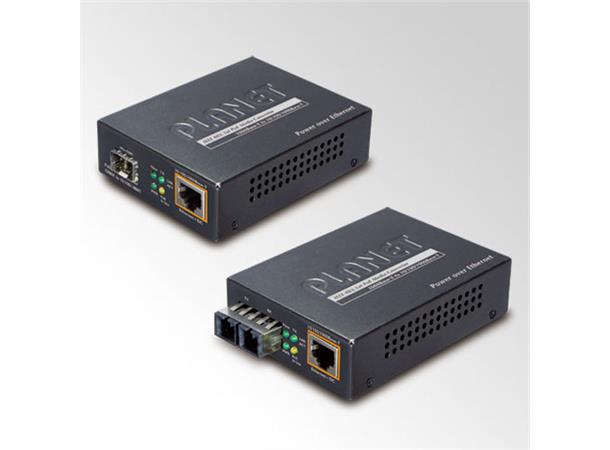

Planet Media Converter 10/100/1000 - SFP

10/100/1000B/T, IEEE802.3at PoE 30W

Varenr: GTP-805A
The Best Data Link and Power Sourcing Solution
To overcome that more and more PoE PD devices need higher Power Input and long distance transmission, PLANET releases new Power over Ethernet Media Converter products, GTP-80x series. With brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
¦ IEEE 802.3at / IEEE 802.3af PoE standard compliant
¦ Maximum 30W output power support
¦ 10/100/1000Mbps duplex mode supports on 1000Base-T port
¦ 1000Mbps Fiber-Optical support
The GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand of higher power required network equipments such as PTZ (Pan, Tilt & Zoom) network cameras,PTZ Speed Dome, color touch-screen VoIP telephones, multi- channel (IEEE 802.11a / b / g / n) wireless LAN access points and other Network devices that need higher power to function normally. The GTP-80x series High Power over Ethernet converter is an ideal solution to deliver data and power to network devices directly via the RJ-45 Port interface without the need of installing extra power outlets and electrical cabling.
Fiber-Optical Link Capability Extend the Range of Network Deployment
The maximum distance between the PoE PSE to PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two type segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000Base-T signal to 1000Base-X one and provides the diverse options of fiber connecting types to meet different network applications.
The GTP-80x series and its fiber connecting type includes:
¦ GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m & 550m
¦ GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
¦ GTP-805A:LC Fiber Interface, Supports Multi / Single Mode SFP module, Distance up to 120km
max. (Varies on SFP module)
With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass Through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the network power usage.
Quick and Easy High Power PoE Network Deployment

The GTP-80x series Gigabit Power over Ethernet converter provides DC 52V power over Ethernet cables. Inserts DC Voltage into Cat.5/5e/6 cable, allowing the cable between the PoE Splitters (POE-151S / POE-152S / POE-161S) to transfer data and power simultaneously for up to 100 meters. Then it will separate the digital data and the power into two selectable DC outputs (5VDC / 12VDC). Thus it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP Camera and wireless AP deployment from restrictions of power outlet locations.
