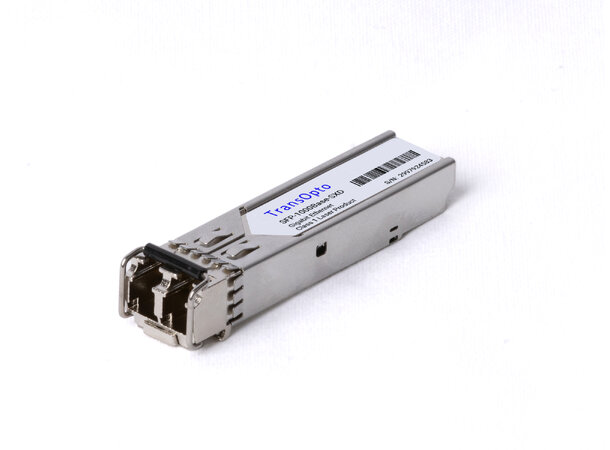

SFP, 1 GbE, DDM, 550m 850nm, 9dB, MM, Generic

SFP, 1 GbE, DDM, 550m

850nm, 9dB, MM, Generic

Varenr: SFP-1G-SXD-G
BeskrivelseTeknisk infoDokumentasjonTilbehørAlternativ
Beskrivelse

Key Features
Data-rate of 1.25Gbps operation
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
500m transmission with 50/125µm MMF
300m transmission with 62.5/125µm MMF
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
TX Power: -9~-3dBm
Receiver Sensitivity: <-18dBm


Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface

Teknisk info

Produktinformasjon

Avstand < 1 km
DDM Ja
Formfaktor SFP
Koding Generic
Kontakt LC Duplex
Mediatype Multimod
