Planet IPOE-171-95W
Advanced Industrial Multi-Gigabit and 802.3bt PoE++ Network Solution

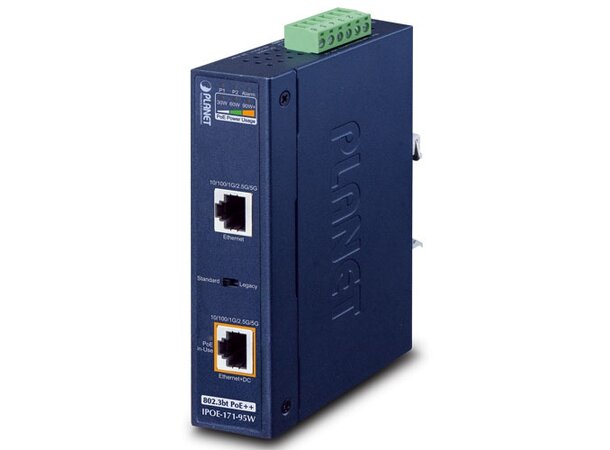

PLANET IPOE-171-95W is a Single-Port, Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.
Interface:
2 Multi-Gigabit RJ45 interfaces
1-port Data + Power output
1-port Data input

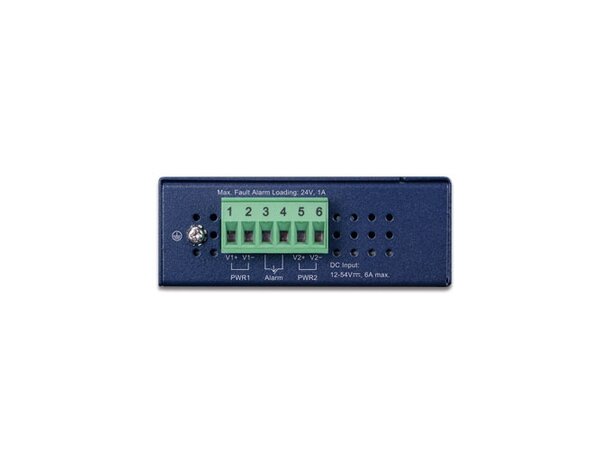

1 terminal block for master and slave power input. (Power Range: 12 ~ 54V DC redundant power)
1 PoE mode (standard/legacy and force) DIP switch
Power over Ethernet
Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
Supports PoE power up to 95 watts for PoE port
Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
Monitors the status of the total PoE usage in real time
Remote power feeding up to 100m
