Optical Communications
Test Applications

- Mixed single mode, multimode & POF testing to 6 l
- Multi-Fiber polarity checking and fiber identification
- Encircled Flux compliant testing
- Tone source for fiber identifier
- Innovative and useful VisiTester feature

Overview

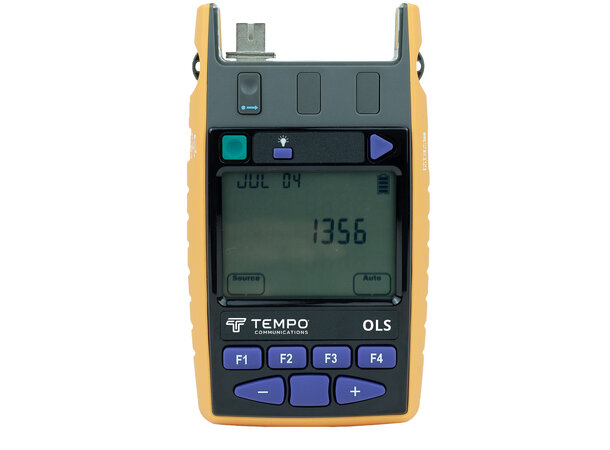

The T2400 / 2800 series Handheld Fiber Sources are used with an Optical Power Meter to test loss on single mode, multimode & POF optical fiber systems, at up to 6 wavelengths.

The 2800 series provide excellent stability, and the 2400 series provide exceptional stability with zero warm up.

High productivity, high availability and ease of use combine to achieve superior measurement confidence.

The innovative and unique VisiTester option is helpful for general loss testing, continuity testing & fault finding.

These Autotest sources can be used with any Kingfisher Autotest optical power meter, loss test set or two-way tester.

Features

• Reliable, rugged & versatile
• Simple to use
• Ideal for mixed MMF & SMF testing
• Up to 6 mixed LED, Laser & VFL sources
• Excellent optical power stability
• Excellent re-connection repeatability
• LCD is large, clear, sunlight readable & backlit
• Autotest compatibility with other instruments
• Optical test tone with Multi-fiber ID function
• VisiTester easily identifies active test channel
• Interchangeable connectors with dust cap / tilt bail
• Encircled Flux compliant multimode LED sources
• Multimode sources supplied with mandrel wraps
• T2400 series is ultra-stable with zero warm up
• Long battery life
• External power / charging via USB
• 3 ~ 7 Year warranty
• ISO 17025 traceable calibration certificate
• Made in Australia
