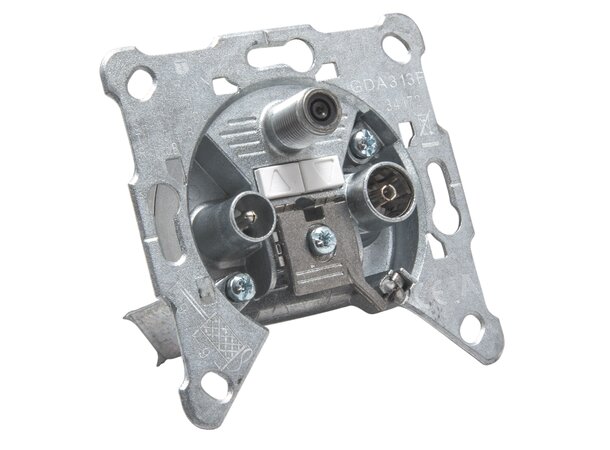

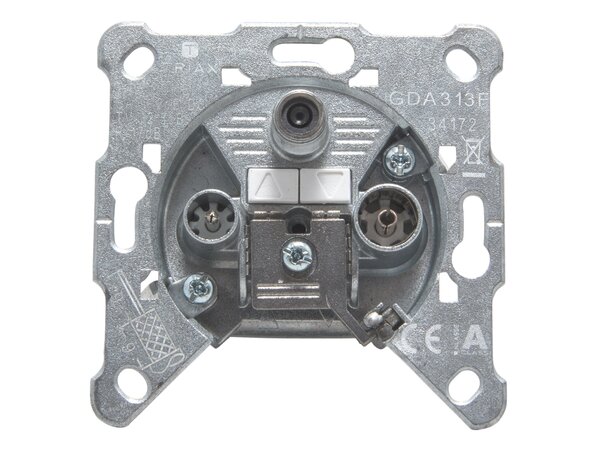

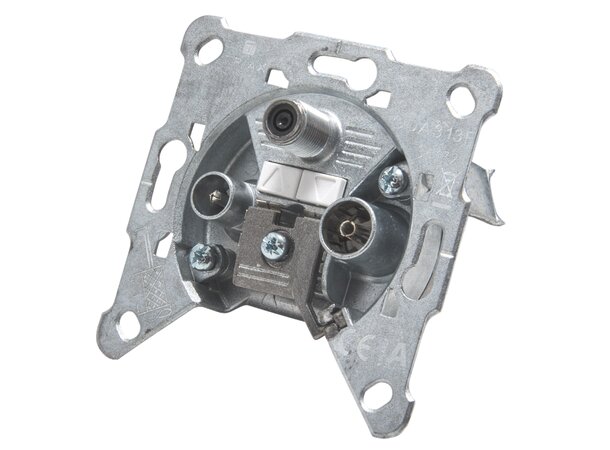

Antennekontakt SAT 12 dB GDA 313

Specifications

Shielding @ 1000...2400 MHz  = 65.0 dB
Shielding @ 300-470 MHz  = 90.0 dB
Shielding @ 30-300 MHz  = 95.0 dB
Shielding @ 470-1000 MHz  = 85.0 dB

Outlet Type  Loop through

Frequency Range FM  5...118 MHz
Frequency Range IN-OUT  5...2150 (2400) MHz
Frequency Range SAT  950...2150 (2400) MHz
Frequency Range TV  5...862 MHz

Through Loss IN-FM  17.0 ±1.0 dB
Through Loss IN-OUT @SAT  1.8±1.0 dB
Through Loss IN-OUT  1.4±0.8 dB
Through Loss IN-SAT  12.0 ±1.5 dB
Through Loss IN-TV  12.5 ±1 dB

Isolation FM-SAT  35.0 dB
Isolation OUT-FM  35.0 dB
Isolation OUT-SAT  18.0 dB
Isolation OUT-TV  28.0 dB
Isolation TV-FM  25.0 dB
Isolation TV-SAT  20.0 dB

Return Loss FM  10.0 dB
Return Loss IN  16.0 (@40MHz -1.5dB/Oct.) dB
Return Loss - Out 5-40 MHz  18.0 dB @40MHz -1.5dB/Oct. dB
Return Loss OUT  15.0 dB
Return Loss SAT  10.0 dB
Return Loss TV  12.0 dB

Impedance  75 ?

DC Passthrough FM  NO - DC blocked at inner conductor
DC Passthrough IN-OUT  Yes (max. 25VDC / 0.5A)
DC Passthrough SAT  Yes (max. 25VDC / 0.5A directed)
DC Passthrough TV  NO - DC blocked at inner conductor
Screening Efficiency  EN50083-2 (Class A+10dB)
MTBF (mean time between failures)  >1.000.000 hours
Temperature - shipping  -40...70 °C
Temperature - storage  -25...55 °C
Temperature - operating  -25...55 °C

Adaptable Cable Diameters - Inner Conductor  0,58...1.15 mm
Adaptable Cable Diameters - F-female  0.6...1.13 mm
Adaptable Cable Diameters- Jacket  4.5...7.2 mm
Adaptable Cable Diameters - Outer Conductor  3.7...5.8 mm
Connector FM  IEC-female
Connector IN-OUT  Spring Clamp Termination
Connector SAT  F-female
Connector TV  IEC-male
