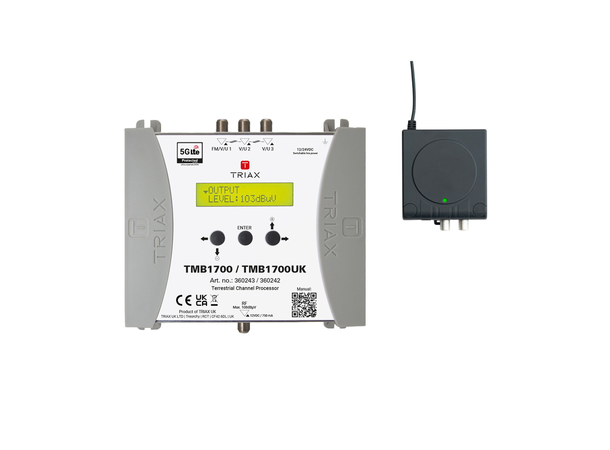

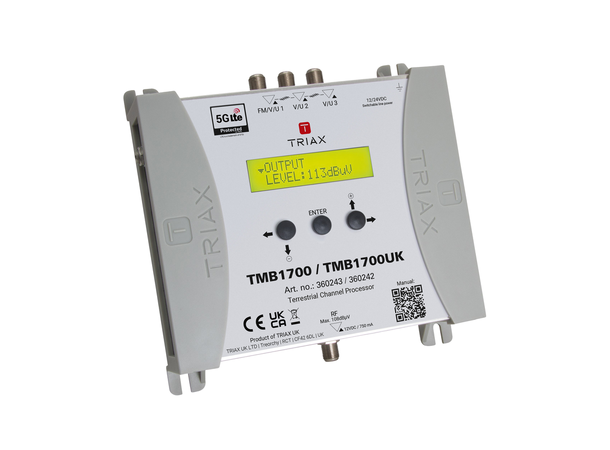

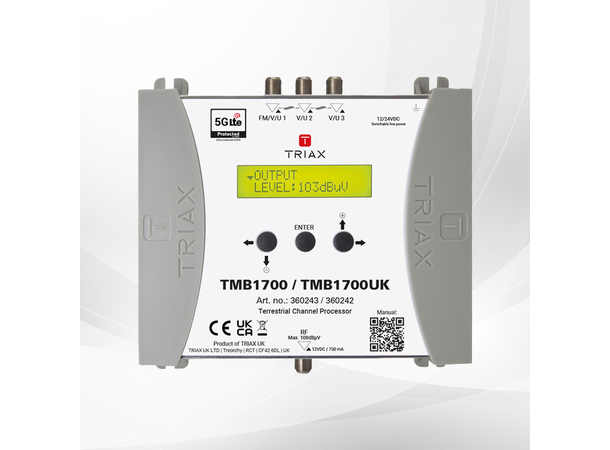

TRIAX TMB 1700 Multibåndforsteker og filter

Triax TMB1700 er enkel å bruke konfigurerbart filter forsterker og konverter for terrestrielle signaler.
Modulen optimaliserer terrestriell FM/VHF/UHF signaler fra flere kilder.

- Smart & Automatic CHANNEL SCAN
- Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6 MUXes wide)
- Can process S-Band output channels
- 5G LTE Protection (694MHz)
- Sharpest filters on the market (50 dB on adjacent channels)
- Real-time AGC on all individual multiplexes
- Complete flexibility in assigning filters from any input.
   Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)
- To avoid unauthorised persons changing the settings, the TMB 1700 can be locked with a security code
- Made in Europe, for worldwide application
- 1 FM/VHF/UHF & 2 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
- 3 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
- Powered via output F-connector
- Product dimensions (H X W X D): 165mm x 190mm x 59mm

Gain
FM:   >65 dB
VHF: >65 dB
UHF: >65 dB
Gain adjustment          Channel AGC
General attenuator      20dB
FM/VHF attenuator    15dB
Noise figure                 7dB
Selectivity                  50dB/1MHz
Return Loss               10dB
Output MER VHF:    35dB UHF: 35dB
ESD protection - All inputs
