Planet Media Converter 10/100/1000 - SFP 2xSFP 1000B/Fx+ 1x10/100/1000B/Tx

Planet Media Converter 10/100/1000 - SFP

2xSFP 1000B/Fx+ 1x10/100/1000B/Tx

Varenr: GT-1205A
BeskrivelseSupportTillbehör
Beskrivelse
Overview:

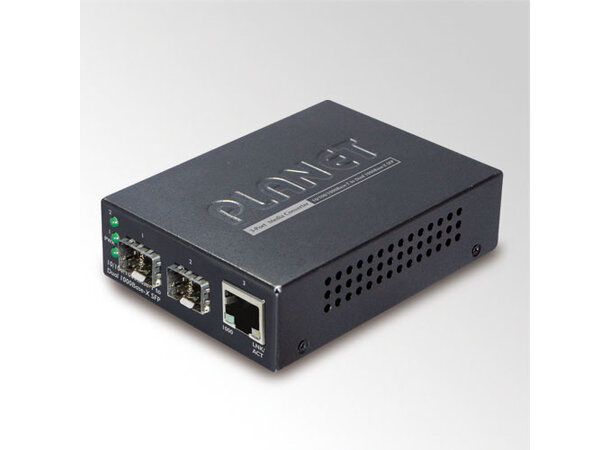

The GT-1205A Gigabit SFP Media Converter provides 1 TP and dual SFP ports to support conversion between 10/100/1000Base-T and 1000Base-X network. With the two 1000Base-SX / LX SFP ports, the GT-1205A provides high reliability and flexibility to extend the media transmission distance up to 550m, 120km, or longer depending on the 1000Base-SX / LX SFP transceiver modules. It allows the two types of segment to connect easily, efficiently and inexpensively.

The GT-1205A can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis, MC-700 and MC-1500 series chassis. The GT-1205A can be fed DC power from these media chassis and help the administrators to maintain the fiber-optic network at one central location. With the 3-Port Switch mode, they work in high performance Store and Forward mechanism, and prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) function.

As the GT-1205A Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX, the Gigabit media conversion installation is quite quick and easy by simply plug and play.
